Magnetic Filter MF
Magnetic Filter MF Thumbnail Magnetic Filter MF Thumbnail Magnetic Filter MF Thumbnail Magnetic Filter MF Thumbnail Magnetic Filter MF Thumbnail Magnetic Filter MF Thumbnail Magnetic Filter MF Thumbnail

Magnetic Filter MF

Line filter that uses a magnet as a filter medium to capture cutting chips and grinding sludge of magnetic materials.
The filter medium is a magnet, so there are no consumables and parts replacement is not required.

Features

Mechanism

Specifications

Processing flow rate

Product weight

Paint color

Silver gray (Munsell No. N-8.0)

* Photos are product images for illustration purposes only. Specifications differ from the actual product.
* The specifications and dimensions are subject to change without notice.
* For the oil-based specifications, please consult us.
* For information about custom products other than standard products, please consult us.
* For information about the specified color, please consult us.

Coolant

Water soluble Oil-based

Category

Magnetic material

Processing Details

Work Material

FC/FCD Steel Carbide

Chip Shape

Sandy Cottony Granular Needle-shaped

Grinding Chip Size

Ultrafine particles (5 μm to 10 μm) Fine particles (10 μm to 100 μm) Coarse particles (0.1 mm to 0.5 mm)

Machine Tool

Grinding machine Saving machine Tool grinding machine Honing machine Super finishing machine (Super finisher) Thread rolling machine Machining center NC lathes Automation machine Gear cutting machine Gun drill machine Induction hardening machine Cutting specialized machine Washing machine

Mechanism

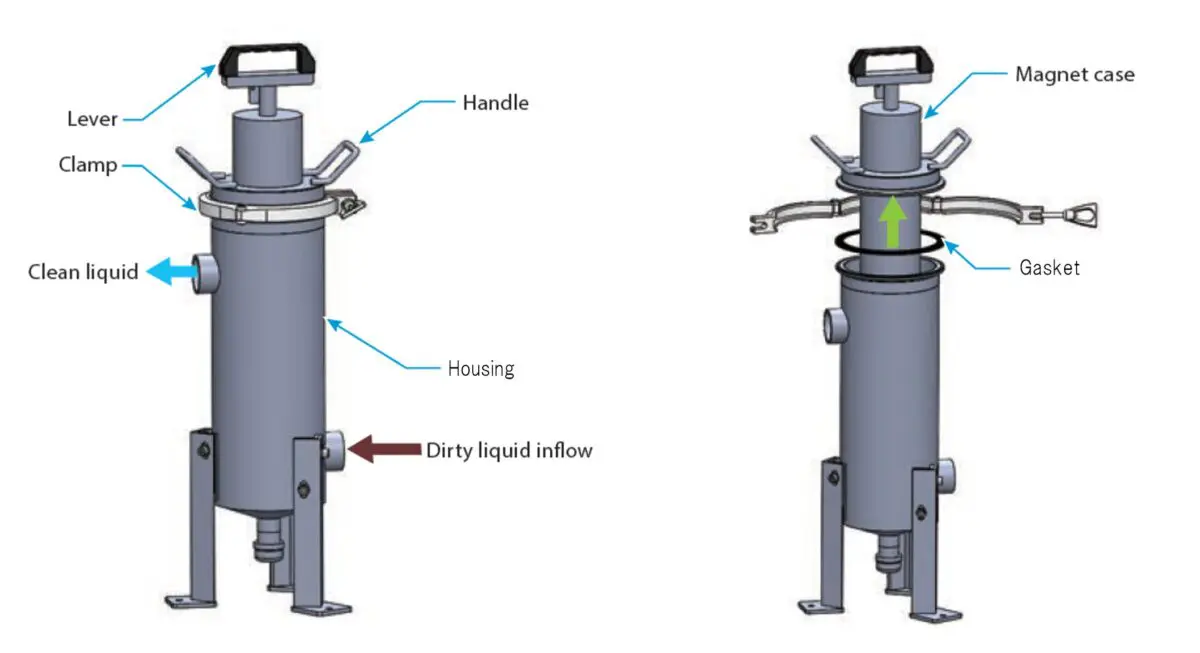

Mechanism 1
Mechanism 2

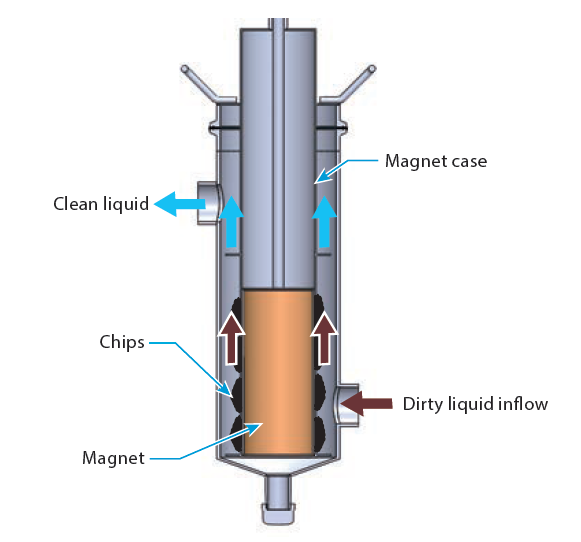

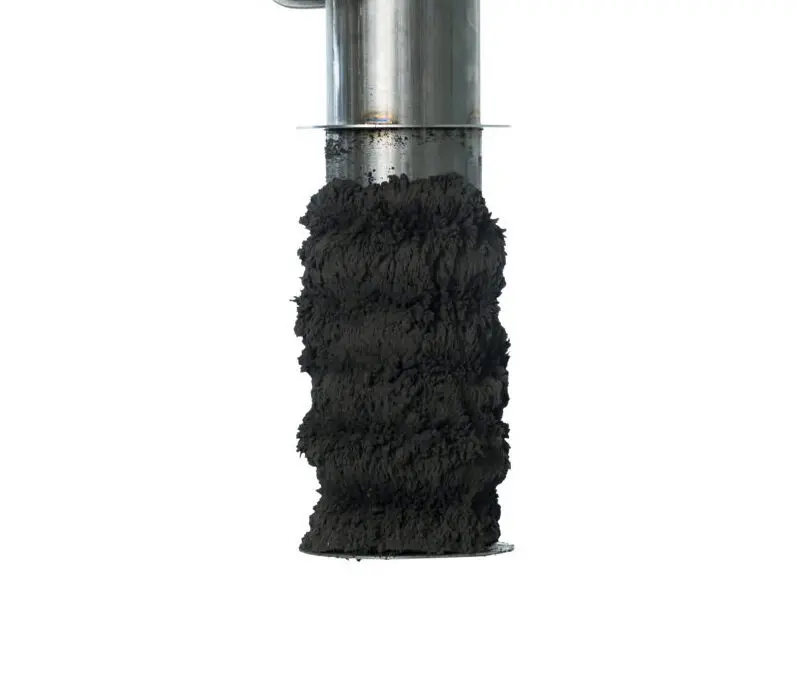

  1. The dirty liquid pumped by the coolant pump is filtered when passing through the magnet, and the clean liquid is sent from the top of the main body to the outside of the main body. Chips and sludge are captured by the magnet part.

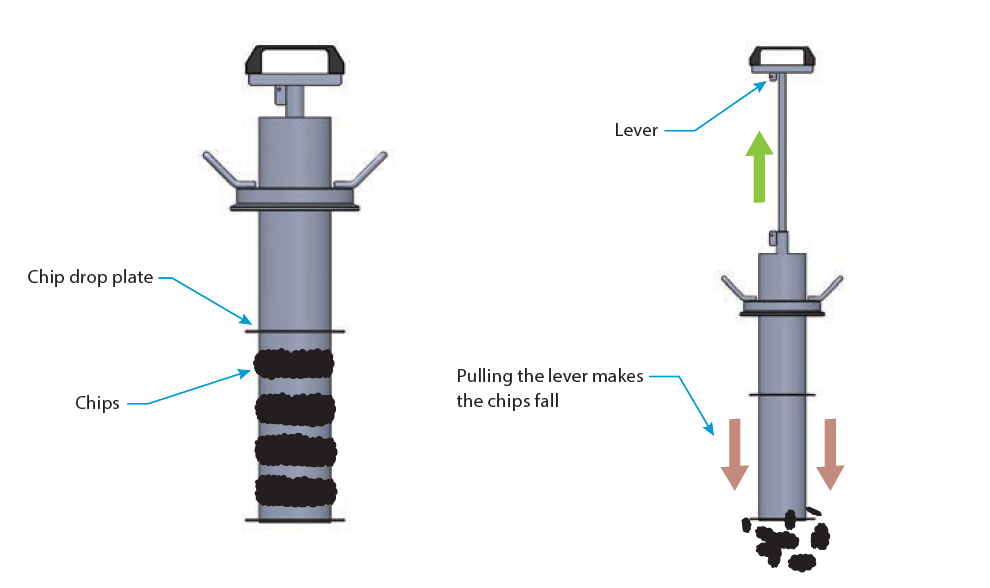

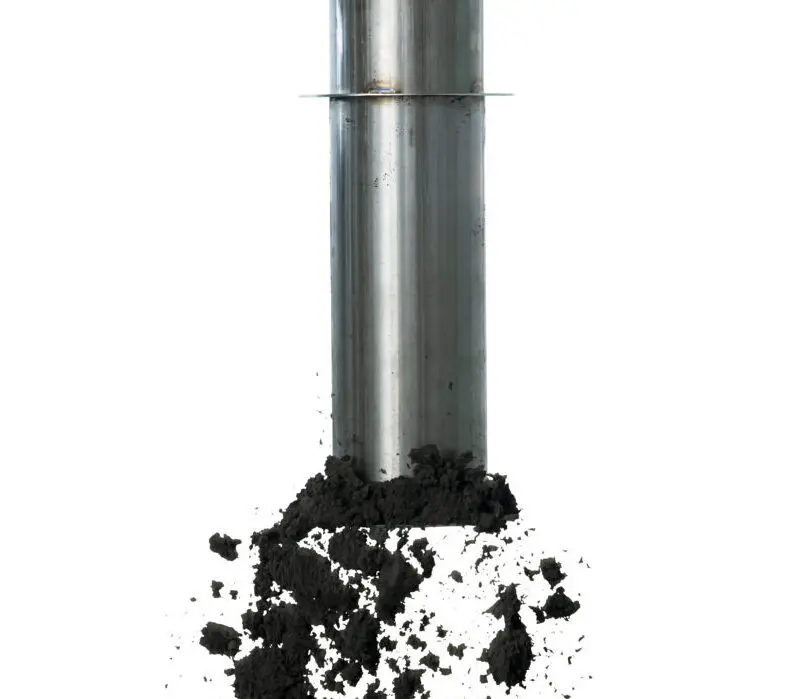

  2. Chips and sludge are able to be recovered at any time. Remove the clamp and lift the handle to remove the magnet case from the housing. Sludge falls from the main body when the lever is pulled.

Specifications

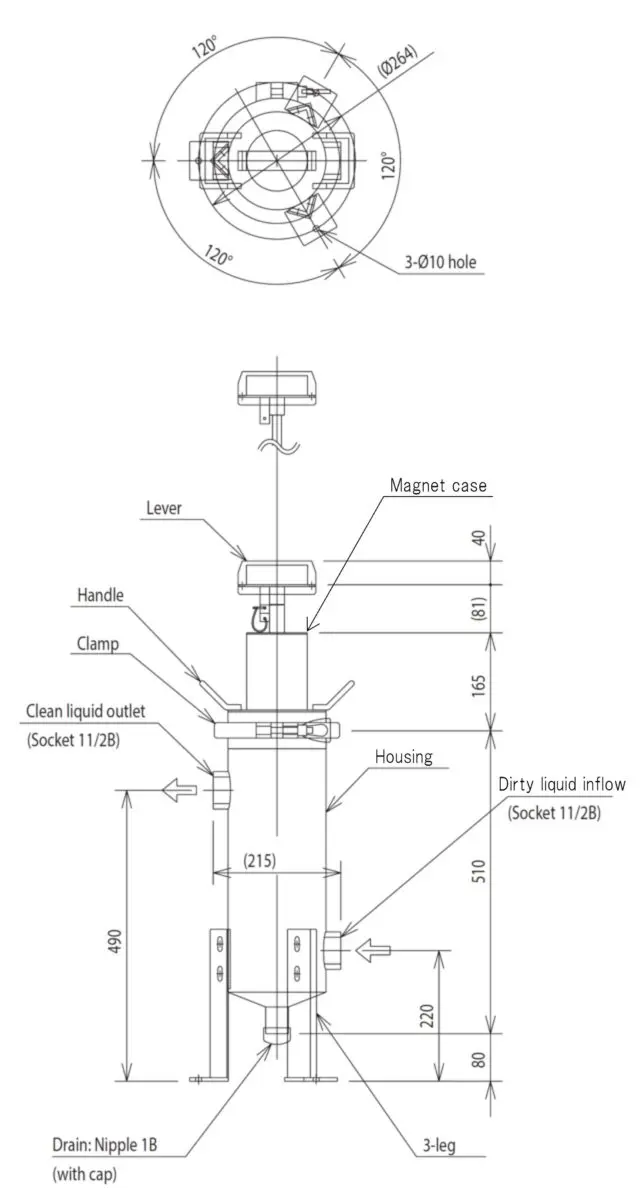

Dimensional drawing

Dimensional Drawing

Product weight

* The product weight varies depending on the specifications, options, etc.

Paint color

Silver gray (Munsell No. N-8.0)

* For information about the specified color, please consult us.

Product Photo (Example)

Main body

Main body

* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.
* The specifications and dimensions are subject to change without notice.
* When the oil viscosity exceeds 50 mm 2/s, please consult us.
* For details on how to select the supply pump, please contact us.
* For information about custom products other than standard products, please consult us.

* Photos are product images for illustration purposes only. Specifications differ from the actual product.
* The specifications and dimensions are subject to change without notice.
* For the oil-based specifications, please consult us.
* For information about custom products other than standard products, please consult us.
* For information about the specified color, please consult us.
