Rolling Filter Conveyor AL/ALL/SKA

Rolling Filter Conveyor AL/ALL/SKA

Conveyor with punching filter that does not require backwashing. The filter is automatically cleaned, reducing maintenance load. Optimum for cutting chip processing of non-magnetic materials.

Features

Coolant

Water soluble

Category

Non-magnetic material

Processing Details

Cutting

Work Material

Aluminum Stainless Copper Titanium Magnesium Mixed chips (aluminum + FC or sintered metal)

Chip Shape

Sandy Cottony Granular Needle-shaped Small curl-shaped (50 mm or less) Small curl-shaped (51 mm or 100 mm)

Grinding Chip Size

Machine Tool

Machining center #30 Machining center NC lathes Automation machine Gear cutting machine Gear cutting machine Cutting specialized machine

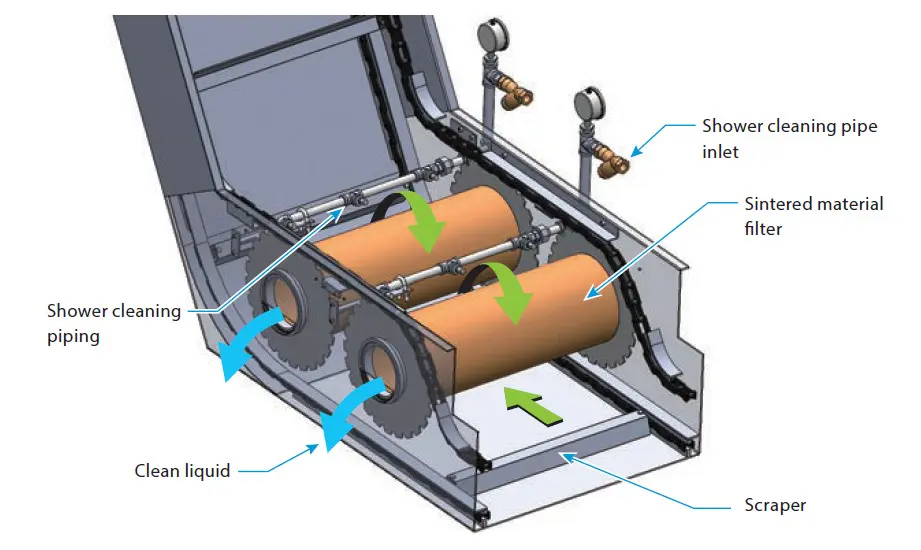

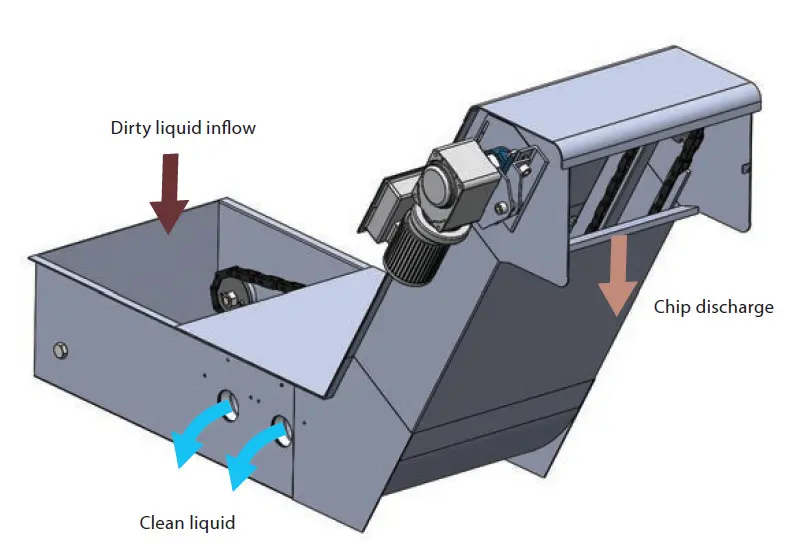

Mechanism

Mechanism image Mechanism image
  1. The dirty liquid flows onto the conveyor.
  2. The dirty liquid is filtered when it passes through the rotating sintered material filter. The clean liquid is sent from the inside of the sintered material filter to the outside of the main body.
  3. Chips adhering to the surface of the sintered material filter are shower-cleaned from the outside of the filter. Clogging is prevented by showering the filter that has come out of the liquid and performing automatic cleaning.
  4. Chips that have settled on the bottom of the conveyor are conveyed by the scraper.
  5. Chips are temporarily stored in the conveyor outlet, drained, and then discharged.

Specifications

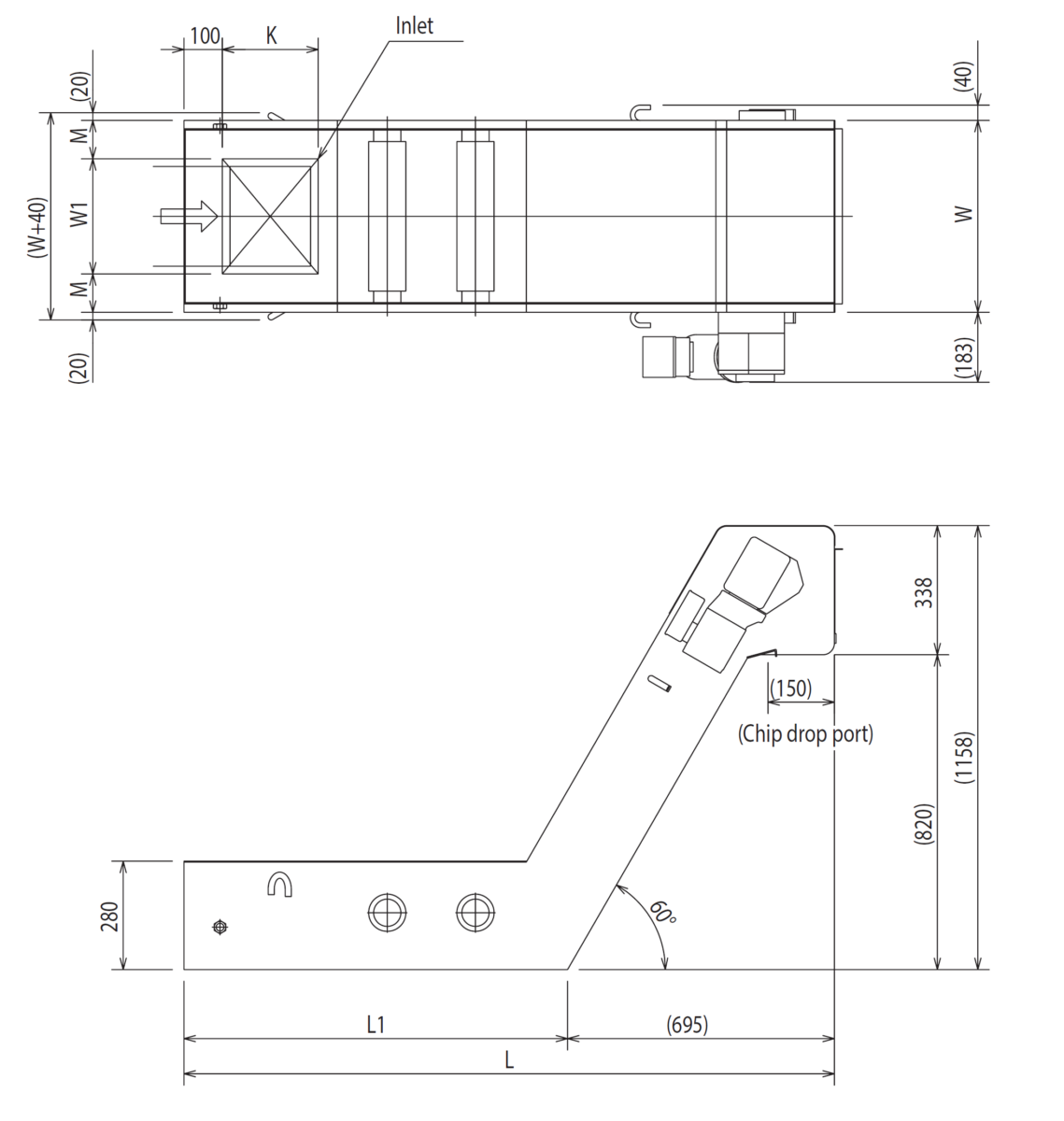

Dimensional drawing

Dimensional drawing

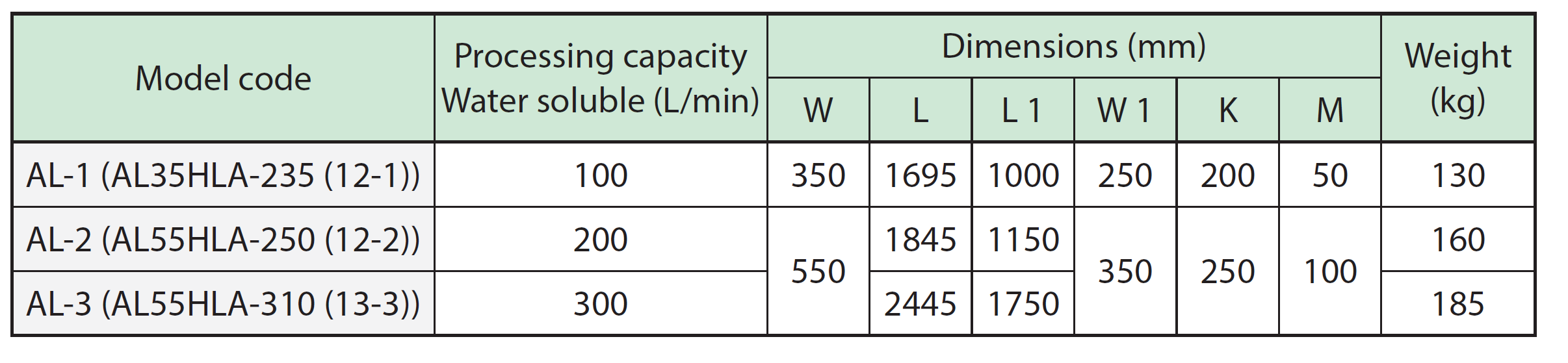

Dimension table

Dimension table

Filtration accuracy

ALL　200μm 90％ or more

* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.

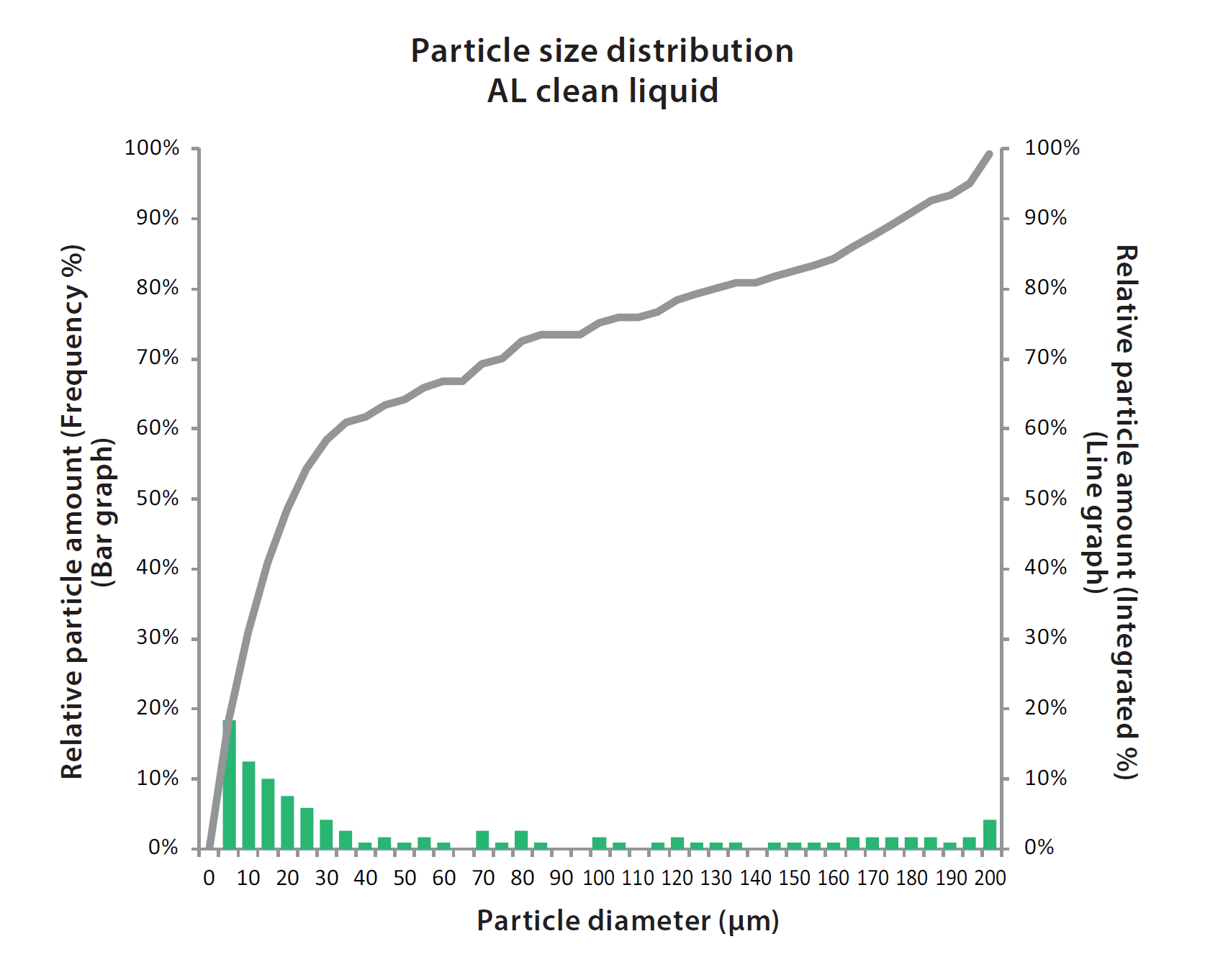

Sludge distribution status

Machine tool: Machining center
Coolant: Water soluble
Processing flow rate: 200 L/min
Chip material: Aluminum

Sludge distribution

Processing flow rate

Product weight

* The product weight varies depending on the specifications, options, etc.

Paint color

Silver gray (Munsell No. N-8.0)

* For information about the specified color, please consult us.

Geared motor

AL　100W

Options

* Please contact us for details.

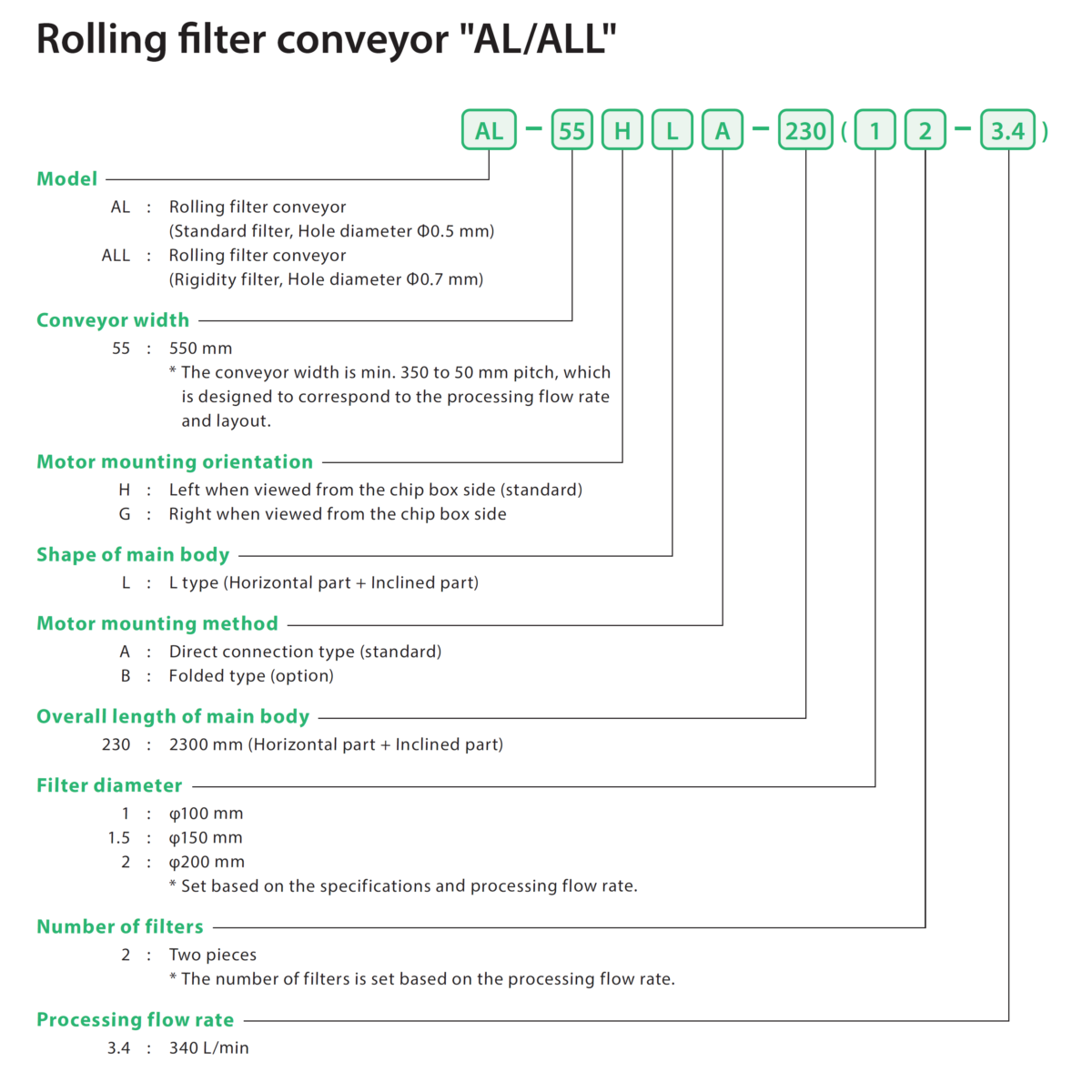

Model code

Model code image

* For SKA, please consult us.

Mechanism

  1. Array
  2. Array

Specifications

Filtration accuracy / Processing flow rate / Model code

Model Code

Product weight

* The product weight varies depending on the specifications, options, etc.

Paint color

Silver gray (Munsell No. N-8.0)

* For information about the specified color, please consult us.

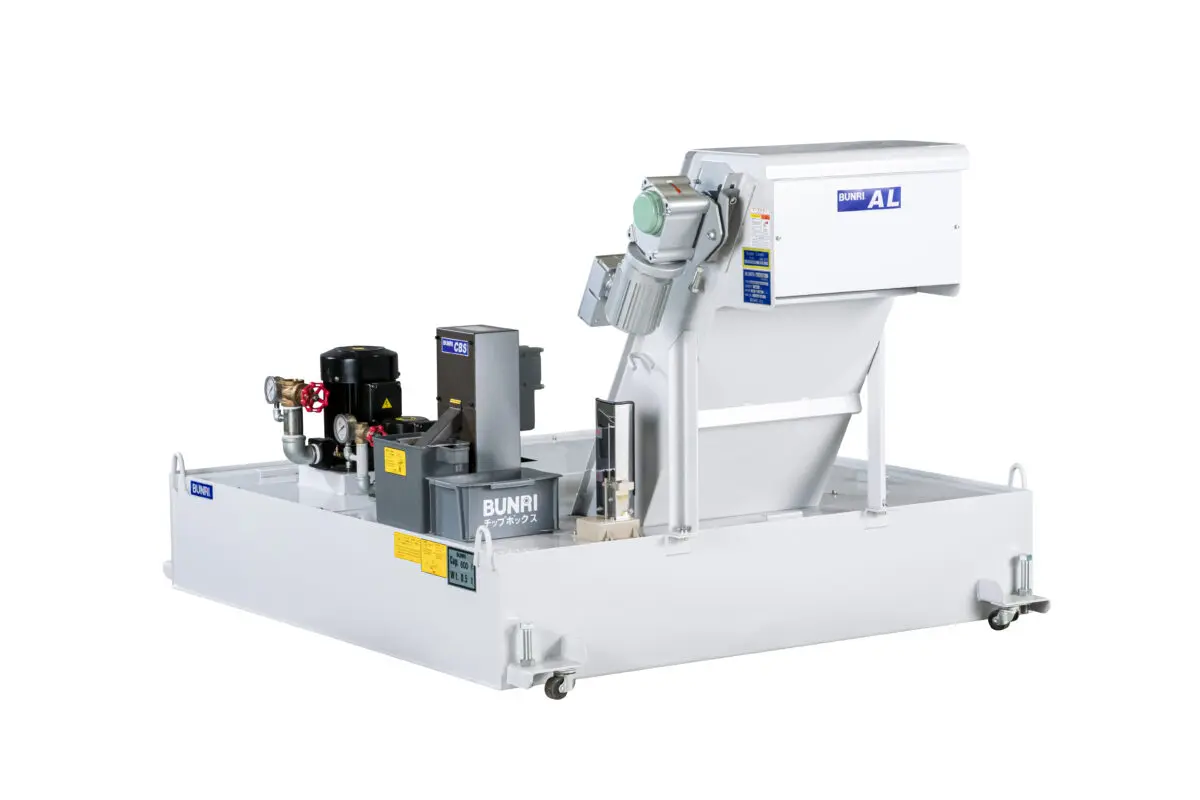

Product Photo (Example)

* The filtration accuracy is based on the results of our experiments, and does not imply that this level of accuracy is guaranteed.
* The specifications and dimensions are subject to change without notice.
* When the oil viscosity exceeds 50 mm 2/s, please consult us.
* For details on how to select the supply pump, please contact us.
* For information about custom products other than standard products, please consult us.

Product Introduction Video

* For SKA, please consult us.
